Batch Atmosphere

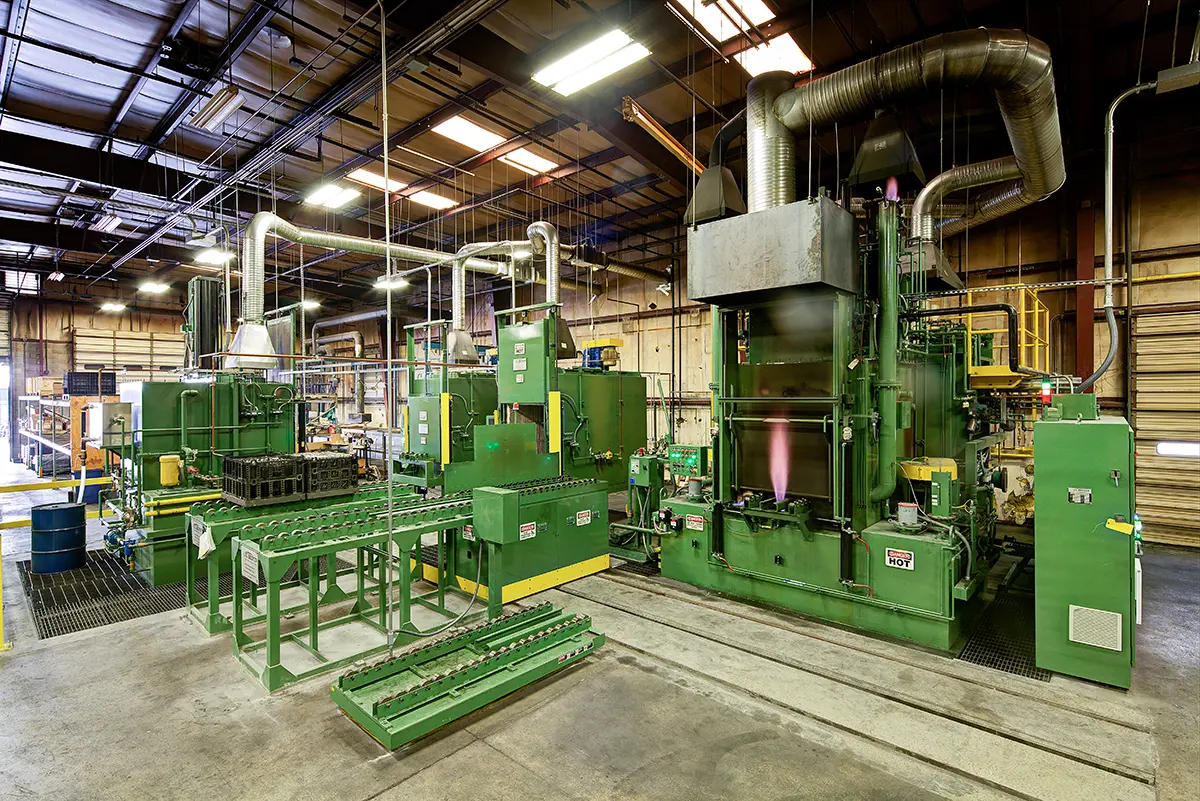

Gasbarre Integral Quench Furnaces are batch type units equipped with recirculating fan, radiant tubes, enclosed vestibule and integral quench tank and compatible with many existing furnace lines. The furnaces are capable of numerous processes including annealing, neutral hardening, carburizing, carbonitriding, and other heat treating processes where a controlled environment is required during the heating and quenching portion of a cycle. As an option, the furnaces can be configured for ferritic nitrocarburizing.
Key Features
- Heating: Electric with SCR Control or Gas with Recuperation
- Temperature Operating Range: 1500°F to 1750°F
- Temperature Uniformity: ±25°F
- Insulation: High Efficiency Packages that Include Refractory Brick and Ceramic Fiber Modules
- Meets AMS 2750 and CQI-9 Requirements
- PLC and HMI Enables Recipe Management
- Electronic Process Gas Flow Control using either Endothermic or Nitrogen/Methanol along with Natural Gas, Air, and/or Ammonia
- Carbon Potential Control
- Plug Mounted, Air-Cooled, Indirectly Driven Circulating Fan Assembly
- Variable Speed Agitation
- Air Cooled Quench Oil Heat Exchanger
- Pneumatically Operated Vertical Lift Doors and Quench Elevator
- Flame Curtain
- Excellent Front Quench Adjustable Door Seal
Common Customization Features
- Fully Compatible with Existing Equipment
- Upper Atmosphere Cooling (Top Cool) Chamber
- Hot Oil Quenching
- Insulated Quench Tank
- High Temperature Operation (1500°F – 1950°F)
- Quench Oil Filtration System
Available Companion Equipment
- Temper Furnaces
- Spray and Dunk Washers
- Endothermic Gas Generators
- Charge Cars
- Scissors Lift Tables
- Holding Stations
- Cooling Stations
